Name:Customizable square fin electric heating element 304 stainless steel heating tube
Type::Air Heater
Dimension(LWH)::As your required
Certification::CE
Weight::Depending on final dimension
Heating wire::Nichrome8020
Length tolerance::+/- 1mm
Probe diameter::5-30mm
Length::100mm 200mm 300mm etc
Insulation material::99 Purity MGO
Wattage tolerance::+/- 5
Wattage Density::1000-3000W/meter
Tube Material::SS304;SS316,Incoloy 800,Incoloy 800
Voltage::110V to 600V
  • Product Description

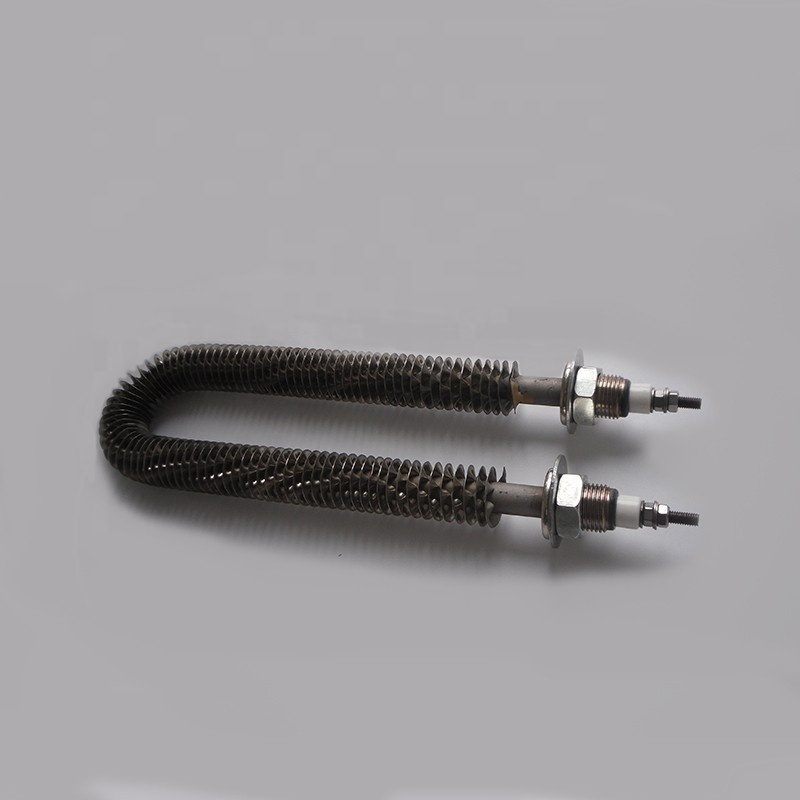

    Finned Air Tubular Heater

    Finned Tubular Heaters are normally used in forced circulation heating of low temperature air, other atmospheres and gases. Suitable for use in a wide variety of forced air heating applications, industrial ovens and food service applications. Steel finned heaters are standard with surface temperatures limited to about 425ºC (797ºF) compared to 815ºC (1500ºF) for an alloy sheathed non-finned heater.

    The air cooling fins shape can be round spiral or rectangular up to customer design.





    Product Show
