Name:Immersion heater for steam generators
Working Temperature Range:RT - 800 ℃
Power Source:Electric
Heating medium:Air,Water,Oil,Other liquid etc
Wattage tolerance:±3
Place of Origin:Jiangsu, China
Voltage:12V- 600V or Customized
Certification:ISO;CE;ROHS
Tube Diameter:6mm to 30mm or Customized
Tube Length:10mm to 6000mm or Customized
Insulation Materials:99 Purity Mgo Powder
Sheath Material:Seamless SUS304,316L,310S,Incoloy800,840,Copper,Titanium or Customizable
Diameter tolerance:+0.05mm -0.05mm (+.002
Terminal option:Anti-explosion box or Thermostat
  • image.png


    Immersion Type Heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.

    The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.).

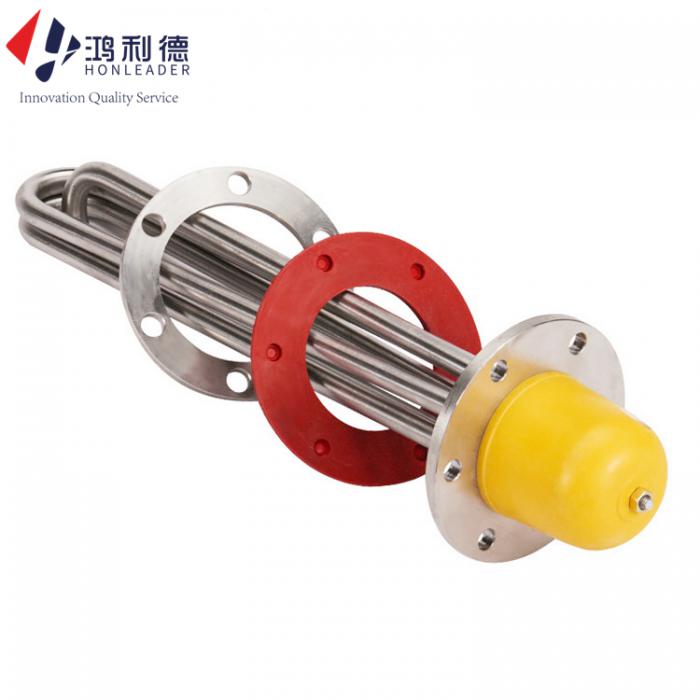

    Flange immersion heaters can be straight or L-shaped.

    immersion flange heater with temperature control are  directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling.

    Sizes of screw plug heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2" pipe threads.

    A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.




    Tube MaterialSeamless SS201,SS304,SS316L, SS310S,Incoloy800/840,Copper,Titanium or Customized
    Tube diameter6mm、8mm、10mm、12mm、14mm、16mm、18mm、20mm、22mm or Customized
    Resistance wireCr20Ni80;Cr25ALl5
    Voltage12v、24v、36v、48v、110v、230v、380v、400v、415v、440v、600v or Customized
    WattageCustomized
    Installation wayThread、Flange、Tri clamp or Customized
    Junction BoxWaterproof、 Dustproof、Explosion-proof
    Screw Thread sizeG / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' or Customized
    Welding wayLaser welding、Argon arc welding、Silver brazing
    Flange sizeDN40/DN50DN80/DN120/DN150/DN200,etc or Customized


    1.Low MOQ: 1-5 pcs MOQ based on heater type and sizes

    2.OEM Accepted : Strong capacity in develop and production under customer drawings

    3.Best Service : Instant response, great patience and full consideration

    4.Best Quality : ISO;CE; Rohs certification With 6S quality control system

    5.Fast Delivery: We enjoy great discount from shipping forwarders


    How to Order?

    ● Welcome to directly place your order of SUS304/316L materials immersion water tubular heater are available in stock.


    ● For others size, please consult Honleader and provide the following basic parameters:

    1. Voltage

    2. Wattage

    3. Heating tube diameter and length

    4. Flange size and pressure,if asked

    5. Heating temperature

    6. Heating medium:  (Air/Gas/Liquid; Corrosive or Non-corrosive)










    ● Hot water storage tanks                                    ● Warming equipment

    ● Oil Preheating                                                     ● Food processing equipment

    ● Cleaning and Rinsing Tanks                               ● Heat transfer systems

    ● Process air equipment                                        ● Boiler equipment

    ● Antifreeze protection for any fluid ......
